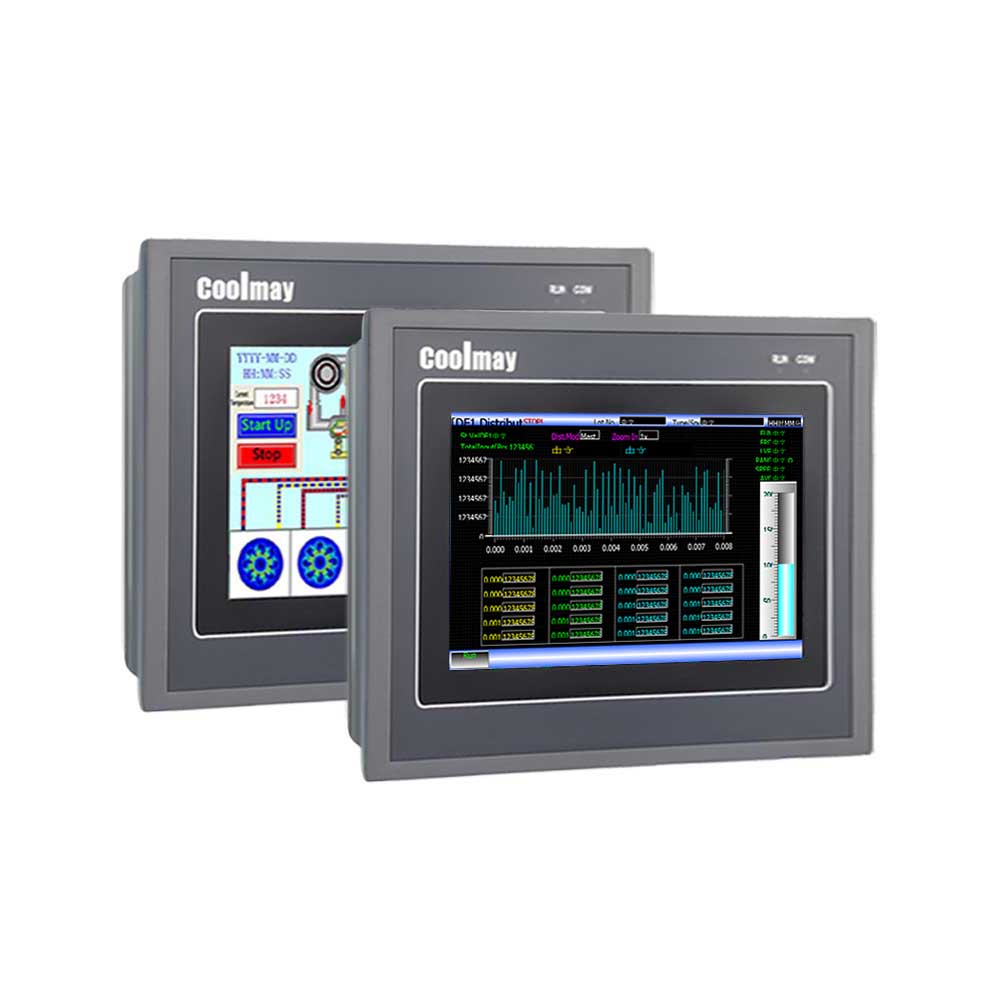

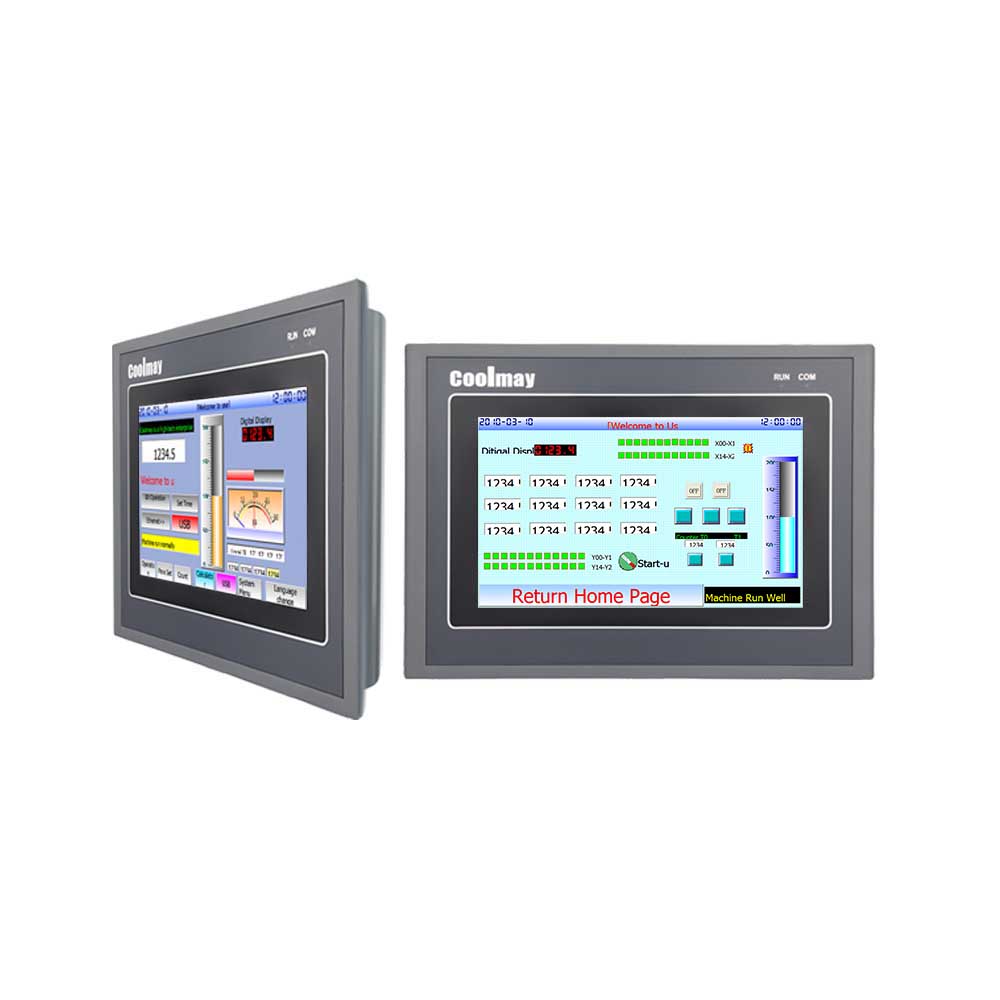

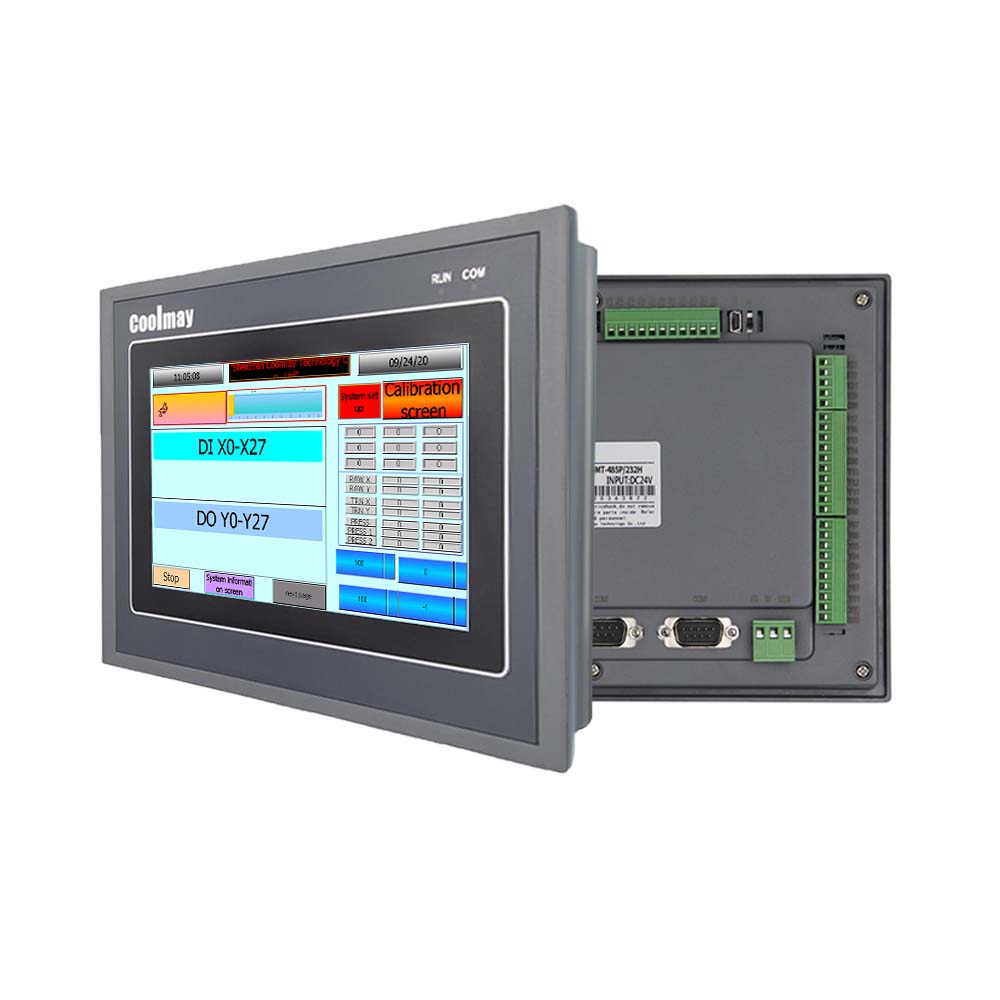

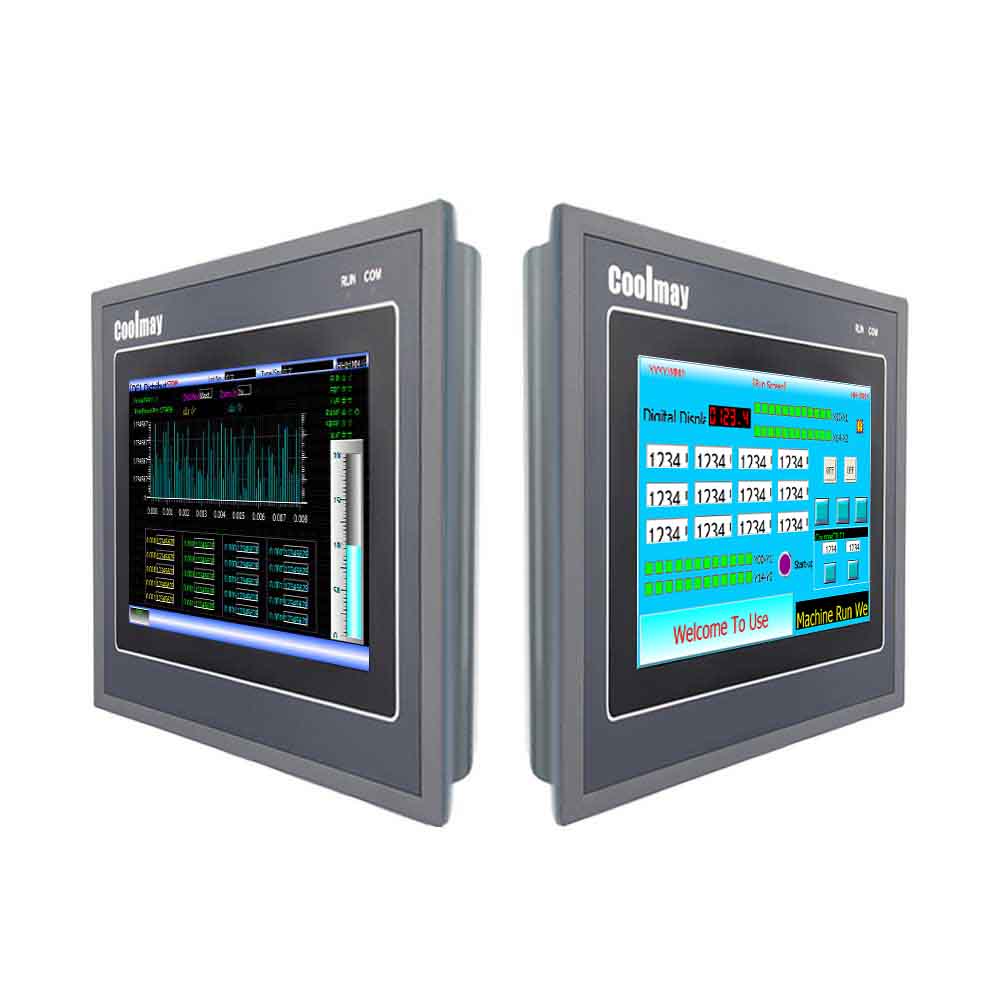

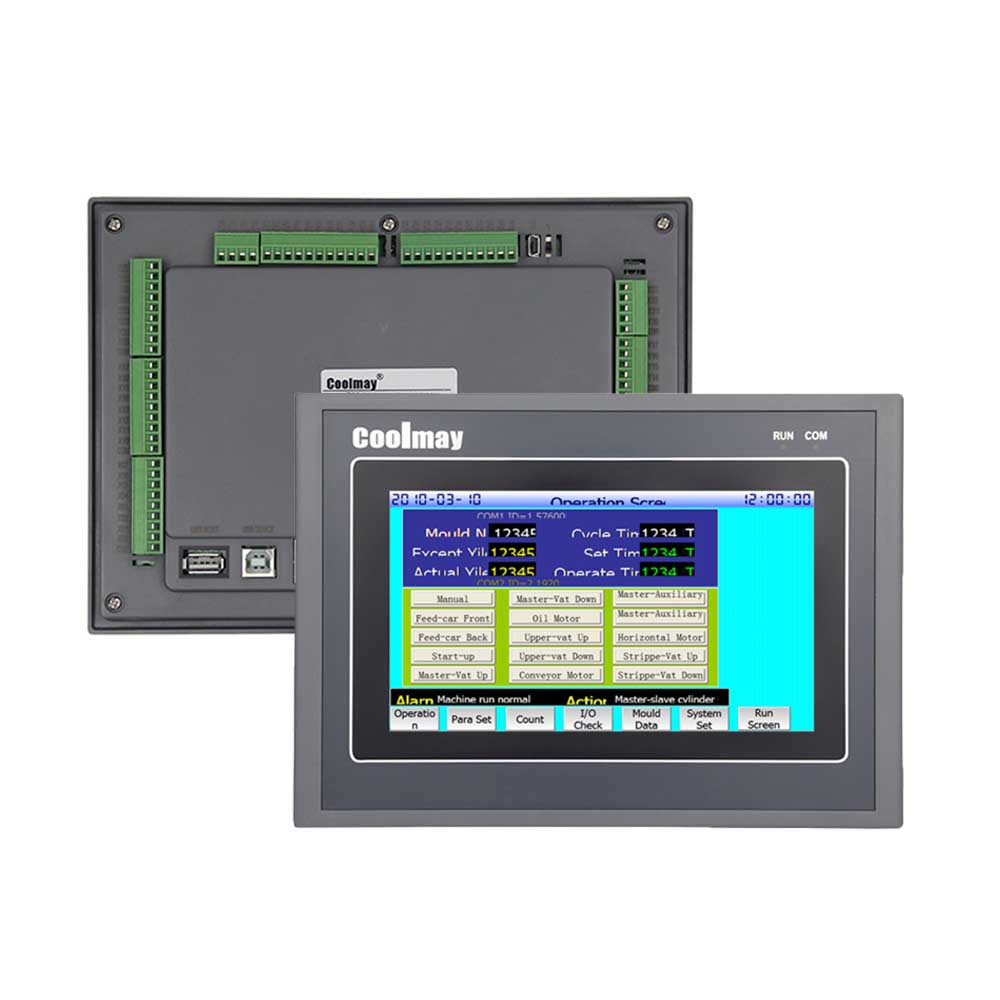

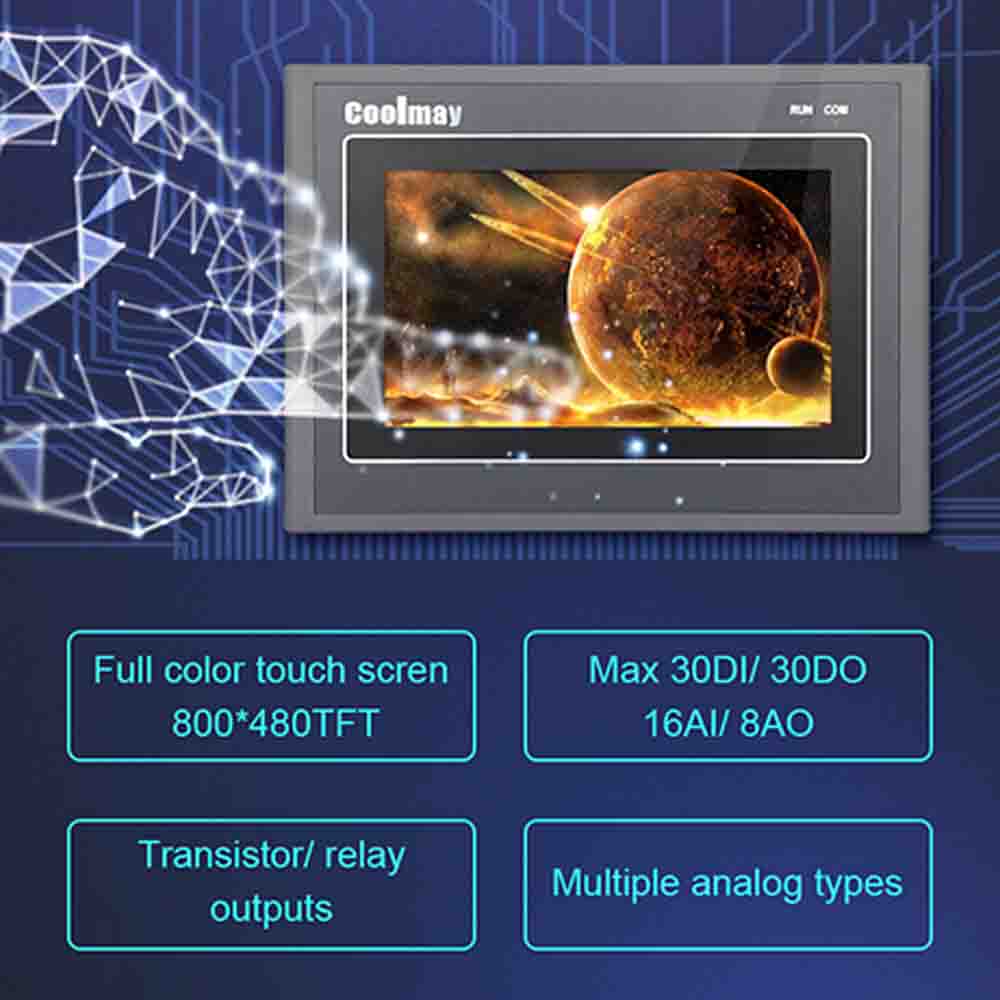

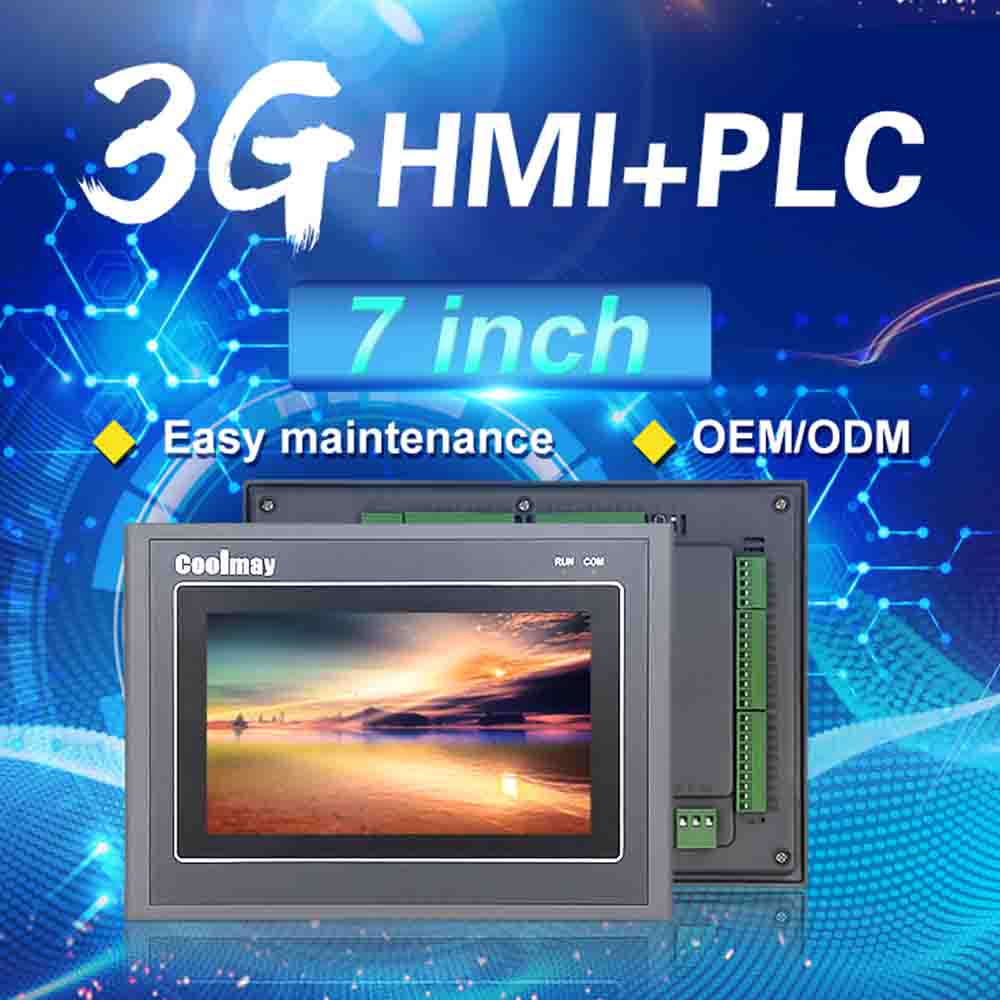

HMI+PLC Controller

1,00 €

The all-in-one solution is to integrate the controller, operation interface, input/output, analog input/output, high-speed counting/pulse and communication port into a compact unit to meet the needs of customer equipment automation control.

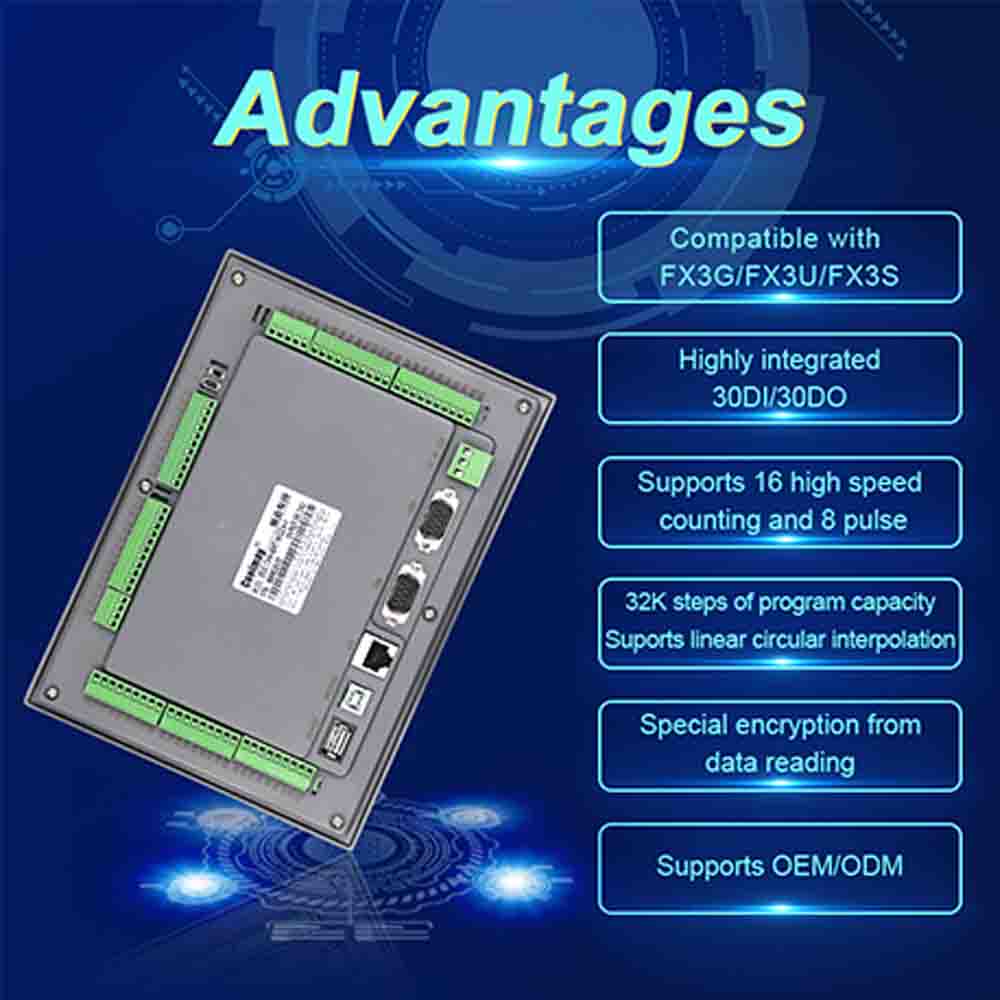

-Integrated PLC, HMl, digital I/O(DW/DO), analog I/O(AD/DA), high speed functions, etc…

-Compatible with FX3G/FX3U/Fx3S PLC, fast operation.

-Up to 30DI/30DO,16AD/8DA.

-Default 2 PLC programming ports, 1 HMl download port.

-Supports optional one or two Rs485, CAN, WIFl, network port on PLC, and supports optional Rs232, Rs485, network port (under development) on HMI.

-Supports multi-channel high speed count and pulse functions.

-32K-step program capacity and 32Kpower retentive registers. Supports interruption, linear arc interpolation and PID self-tuning.

-Supports special encryption. HMl and PLC can be encrypted respectively. Set PLC password as 12345678 can prohibit reading program completely. (Note:PLC only supports 8-bit password.)

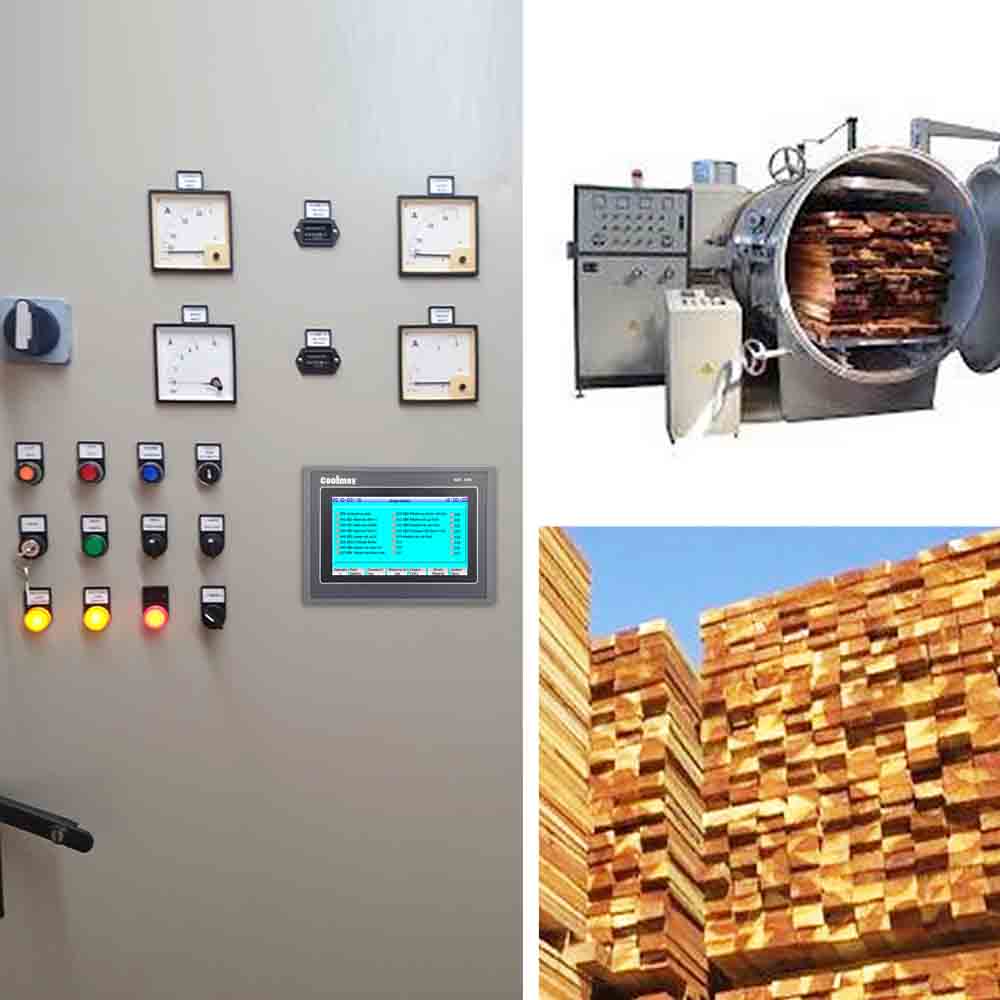

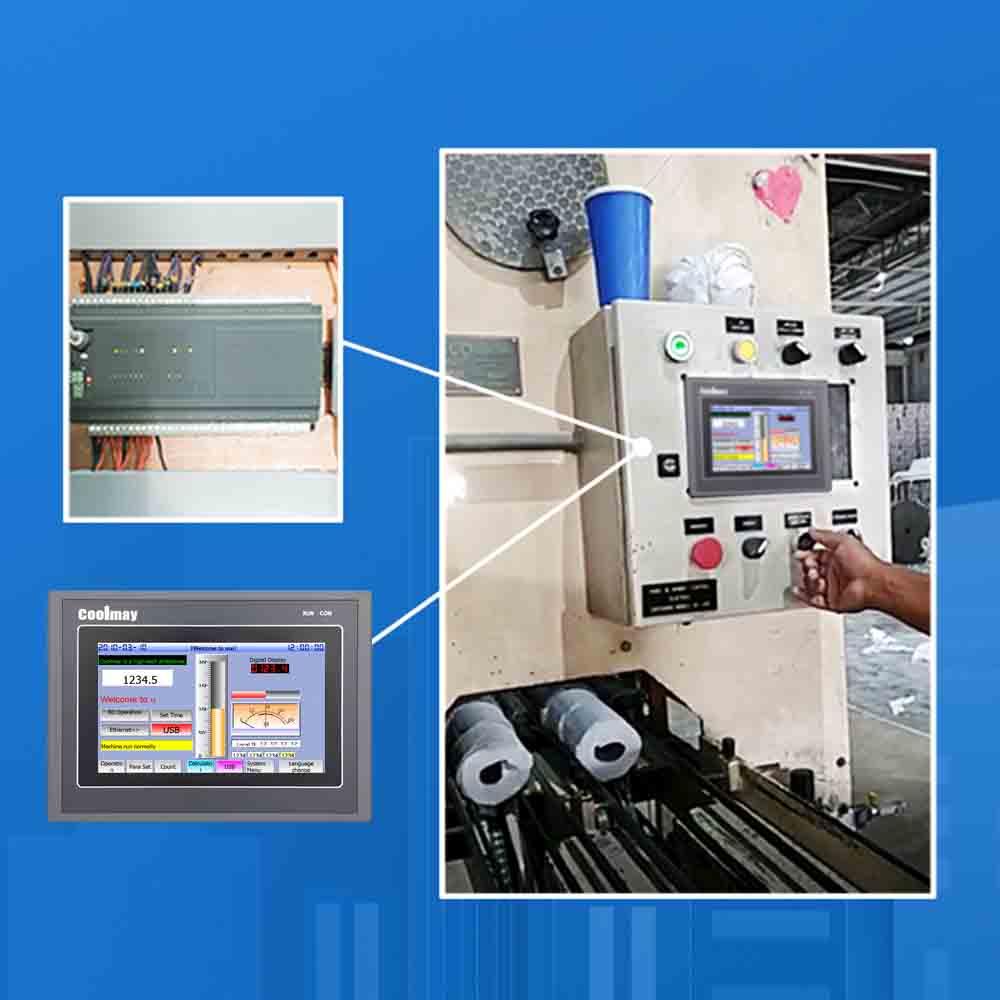

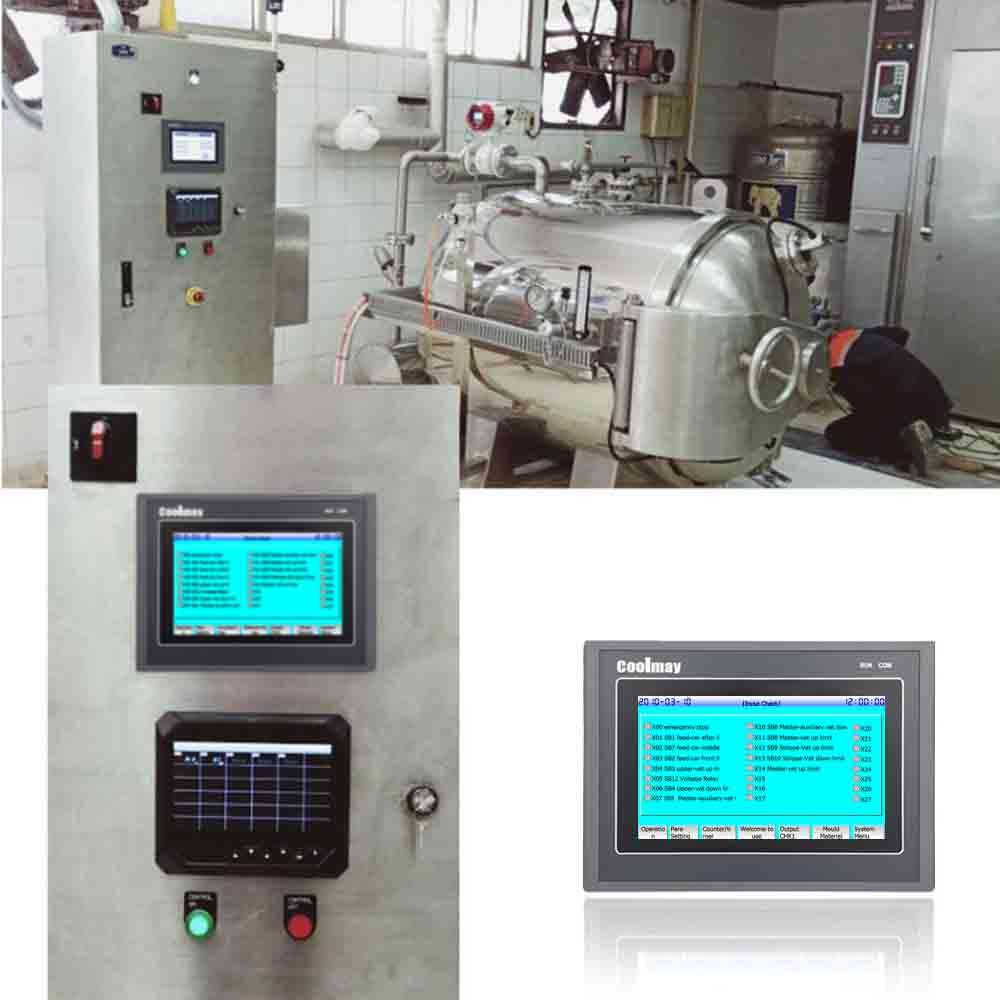

-Combined with Coolmay network modules can realize remotely control.

-Supports OEM and ODM.

Categories: ,

Description

Model EX3G-43FH EX3G-50FH EX3G-70FH EX3G-70KFH EX3G-100FH
Dimension 134*102*34mm 151*96*36mm 200*146*36mm 226*163*35.6mm 275*194*36mm
Cutout size 120*94mm 143*86mm 192*138mm 217*154mm 262*180mm
Power Consumption 4-6W 5-7W 6-7W 6-7W 6-8W
HMI
Feature 60K-color resistive touch screen, supports portrait display
Type 4.3″TFT 5″TFT 7.0″TFT 7.0″TFT 10.1″TFT
Display size 97*56mm 108*65mm 154*87mm 154*87mm 222*125mm
Resolution

(pixels)

 480*272 800*480 Standard: 800*480

Optional: 1024*600

(Model: EX3G-70HD)

 800*480 1024*600
RAM NOR Flash 8MB NOR Flash 16MB
ROM 64MB
CPU 32bit CPU 408MHz
Default Type-C HMI download port Type-B HMI download port
Optional COM port 1 RS232 or WIFI 1 RS485 or 1 RS232
Software Coolmay mView HMI Programming Software
PLC
I/O Max 12DI/12DO 12DI/12DO or 20DI/18DO or 24DI/20DO 12DI/12DO or 20DI/18DO or 24DI/20DO or 30DI/30DO (max 28MR)
I/O level Input: Passive NPN, public terminal isolated

Transistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact
DO type Relay MR or MOS

(Relay output: max load 5A/ MOS output: max load 2A)

 Relay (MR) or transistor (MT, Y0-Y3 are MOS) or mixed (MRT)

(Relay output: max load 5A/ transistor output: max load 500mA)
High-speed counting Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz,

or 2 ABZ 60KHz + 1 AB phase 10 KHz
High-speed pulse 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.

High-speed counting + high-speed pulse < 480KHz

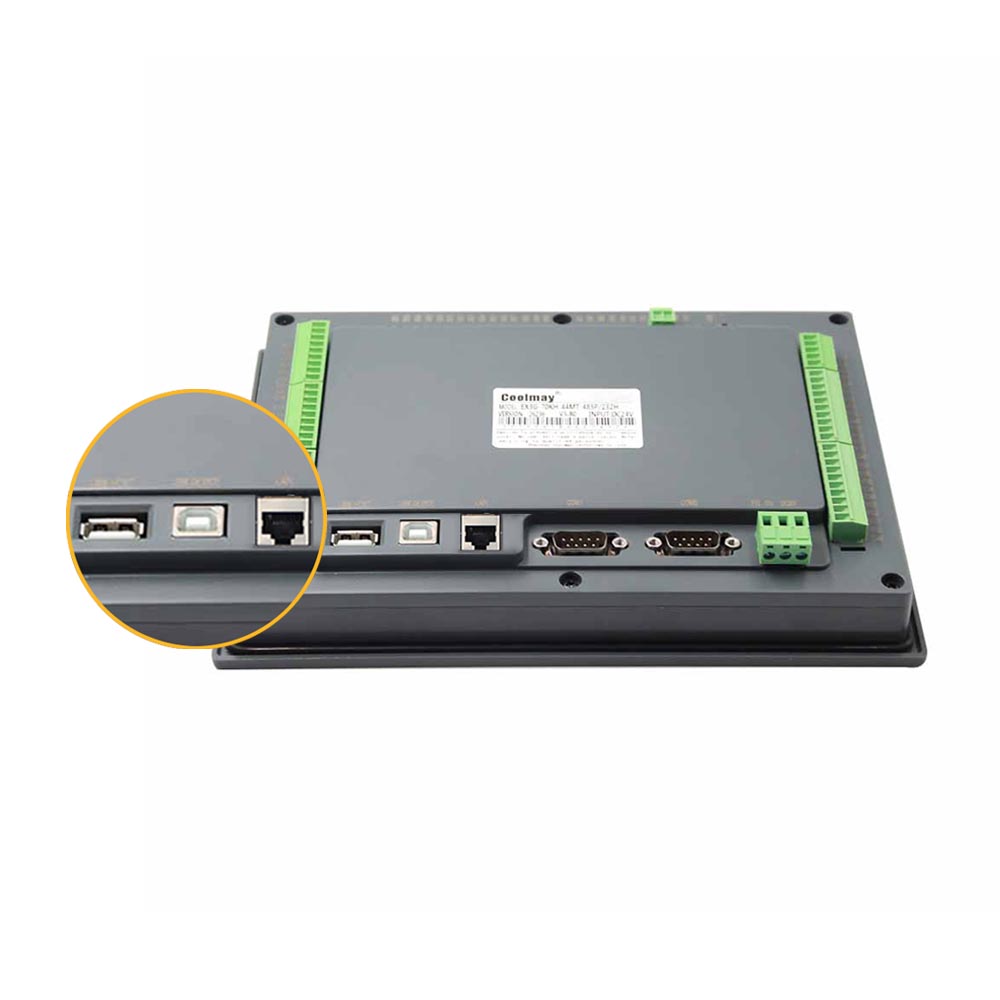

Default programming port 1 TYPE-C, 1 RS232 1 Mini USB, 1 RS232
Optional COM port 1 Rs485 or 2 Rs485 COM ports (one is changed from the default Rs232 port) 1 Rs485 or 2 Rs485 COM ports (RS485 port on HMI and RS232 on PLC will be unavailable) 1 Rs485 or 2 Rs485 COM ports (one is changed from the default Rs232 port)
CAN (2.0A/B) port, Ethernet port, WIFI (will occupy default RS232 port)
Analog I/O

(optional)

 Max 4AI/2AO Max 12AI/8AO Max 16AI/8AO
AI type (optional) Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/

0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed
AO type (optional) 0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed 0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/

-5~5V/ -10~10V (2AO for 1 minus voltage)
Software Compatible with Mitsubishi GX Developer 8.86 and WORKS 2
Suggested models: EX3G-43FH/50FH-16MR/24MR/24MT(-4AD2DA-485P/232H)

EX3G-70FH/HD-16MR/24MR/38MT/38MRT(-12AD8DA-485P/232H)

EX3G-70FH/HD-44MR/44MRT(-8AD6DA-485P/232H)

EX3G-70KFH/100FH-16MR/24MR/38MR/44MT/44MRT(-16AD8DA-485P/232H)

EX3G-70KFH/100FH-60MT/60MRT(-5AD2DA-485P/232H)

* If 30DI/30DO for EX3G-100FH, max support 5AI/2AO. If 24DI/20DO, max 16AI/8AO.
